This is a switchgear with vibration-proof and anti-seismic features that protects electric facilities from earthquakes and prevents the secondary harms of the earthquakes, which are personal injuries and property damages, by installing spring modules that isolate vibration in high and low voltage switchgears and motor control center to secure the safety of electrical facilities during an earthquake

Switchgear equipped with vibration-proof and earthquake vibration absorption device

High-tension switchgear and low-tension switchgear

A device that receives electricity and converts it to match the purpose of use and the purpose of a facility

Motor control center and Integrated panel board

Devices that protect the operation and control for more stable and smooth operation of the motor

Certification

• Patent No. 10-1561039
• Performance certification 19-C0K0317 (high-tension panel, low-tension panel, MCC panel)
• Performance certification 19-CBK0467 (panel board)
• Selected as excellent product by the Public Procurement Service 2017046

•

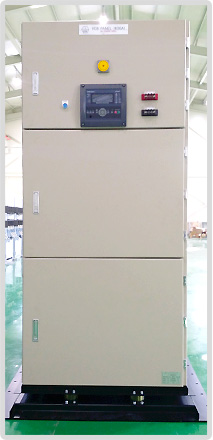

  High-tension
  switchgear

•

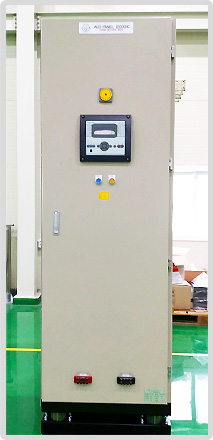

  Low-tension
  switchgear

•

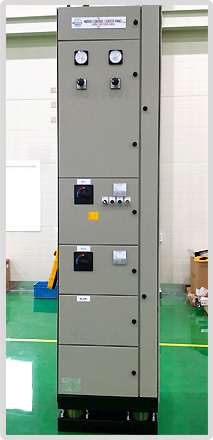

  Motor
  control center

•

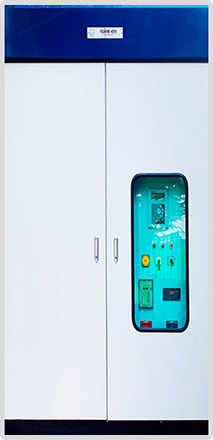

  Integrated
  panel board

Specification

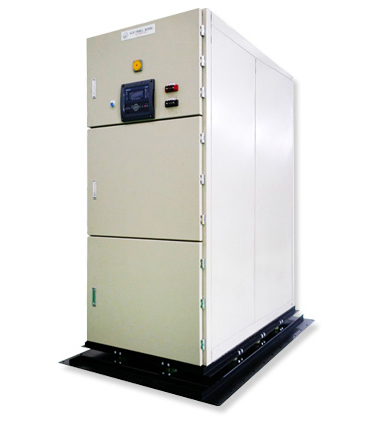

This is a customer-tailored device that puts safety first, reducing the installation area by up to 57% compared to conventional extra-high tension switchgears. As the MCSG that has the highest level of protection among air insulated closed switchgears, this is structured in an independent bus that prevents accidental impact on the adjacent switchgear.

25.8KV MCSG | Designation of Excellent Product

Section	Contents
Rated Current		630/1250A
Rated Frequency		60Hz
Rated Interrupting)		25kA/3sec
Internal Arc Test		25kA/1sec
Rated Insulation Level	Power frequency withstand voltage (Power Frequency)	60kV/1min
	Impulse withstand voltage (1.2 x 50㎲)	125kV
Degree of Protection		IP 42
Loss of Service Continuty and Partition class		LSC2B-PM
Accessibility and Internal Arc Classification		AFLR
Seismic rating under the technical standards for safety and reliability of telecommunication facilities		7Grade

7.2KV MCSG | Designation of Excellent Product

Section	Contents
Rated Current		630/1250/2000A
Rated Frequency		60Hz
Rated Interrupting		25kA/3sec
Internal Arc Test		25kA/1sec
Rated Insulation Level	Power frequency withstand voltage (Power Frequency)	20kV/1min
	Impulse withstand voltage (1.2 x 50㎲)	60kV
Degree of Protection		IP 42
Loss of Service Continuty and Partition class		LSC2B-PM
Accessibility and Internal Arc Classification		AFLR
Seismic rating under the technical standards for safety and reliability of telecommunication facilities		7Grade
